Model
|

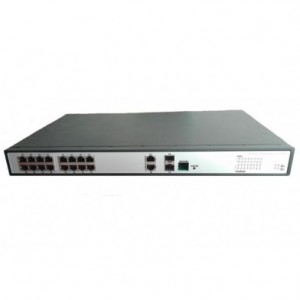

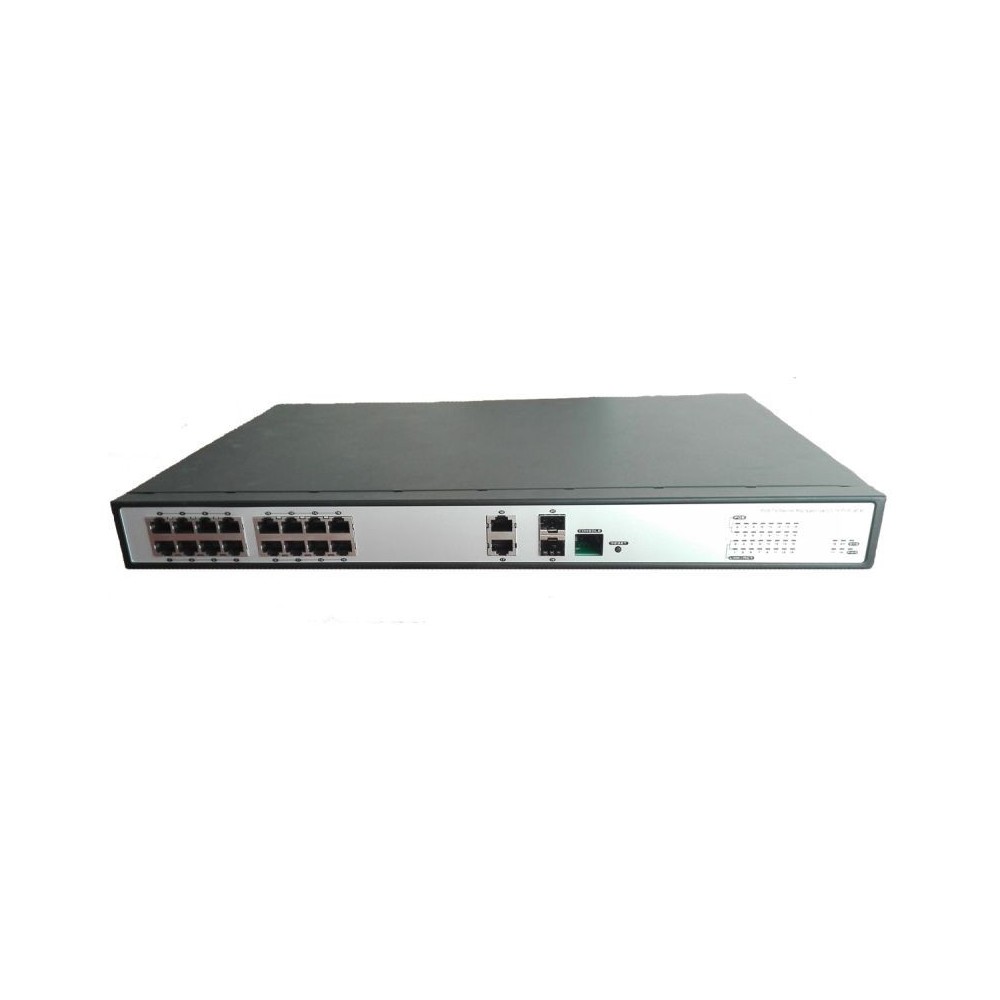

FS-S1016EP-2C(265W)
|
|
Product Name
|
16-Port 10/100Mbps IEEE 802.3af/at PoE Switch (End-Span PSE)
|
|
Power Supply
|
Power Supply Mode
|
Built-in Power Supply
|
|
Voltage Range
|
AC100~240V
|
|
Power Consumption
|
The device <10W PoE power supply ≤ 265W
|
|
Network Port Parameter
|
Network Port
|
Ethernet Downlink Port: 16*10/100Mbps 2 Combo Uplink Port:10/100/1000Mbps RJ-45 or 1000Base-X optical fiber SFP port
2 Combo Uplink Port: 10/100/1000Mbps RJ-45 or 1000Base-X optical fiber port SFP
|
|
Transmission Distance
|
Downlink Port: 100m Uplink RJ-45 Port: 100m
Transmission distance of the optical fiber port depends on different SFP modules
Uplink port: 100m The transmission distance of optical fiber port depends on the different SFP modules
|
|
Transmission Medium
|
Downlink Port: Cat5e/6 standard cable Uplink Port: Cat5e/6 standard cable or fiber
|
|
PoE Standards
|
IEEE802.3af/at
|
|
PoE Power Supply Mode
|
End-span method
|
|
PoE Power Supply Wattage
|
Each port ≤30W Whole device ≤ 265W
|
|
Network Switch Specification
|
Network Standards
|
IEEE802.3, IEEE802.3ab, IEEE802.3ad, IEEE802.3u, IEEE802.3az, IEEE802.3z
|
|
Swap Mode
|
Store-and- forward
|
|
Data-Caching Mechanism
|
4.1M
|
|
MAC Address List
|
8K
|
|
Backplane Bandwidth
|
7.2Gbps
|
|
Forwarding Capacity
|
5.35Mpps
|
|
Indicator
|
Power Indicator
|
Red LED on: power on
|
|
Uplink Combo Port
|
Green LED on: link up, off: link down, blinks: data transferring
|
|
PoE Indicator
|
16 PoE indicators (Yellow)
|
|
PoE Network Port Indicator
|
1~16 port indicators blink while data transferring
|
|
Button
|
Reset Button
|
Press the reset button to turn on indicator (green) and the device restarts
|
|
Protection Level
|
Surge Protection
|
6KV (common mode), 10/700us IEC61000-4-5 2KV (differential mode), 10/700us IEC610000-4-5
|
|
Electrostatic Protection
|
Contact Discharge: ±6KV Air Discharge: ±8KV Standard: IEC61000-4-2
|
|
Reliability
|
Mean time between failures (MTBF)
|
Ôºû50000h
|
|
Mechanical
|
Dimensions (L*W*H)
|
440mmx292mmx43.6mm
|
|
Housing
|
Galvanized
|
|
Body Color
|
Black
|
|
Net Weight
|
4.25kg
|
|
Environmental
|
Operating Temperature
|
0‚ÑÉ~55‚ÑÉ
|
|
Storage Temperature
|
-40‚ÑÉ~85‚ÑÉ
|
|
Relative Humidity
|
0~95% (non-condensing)
|
