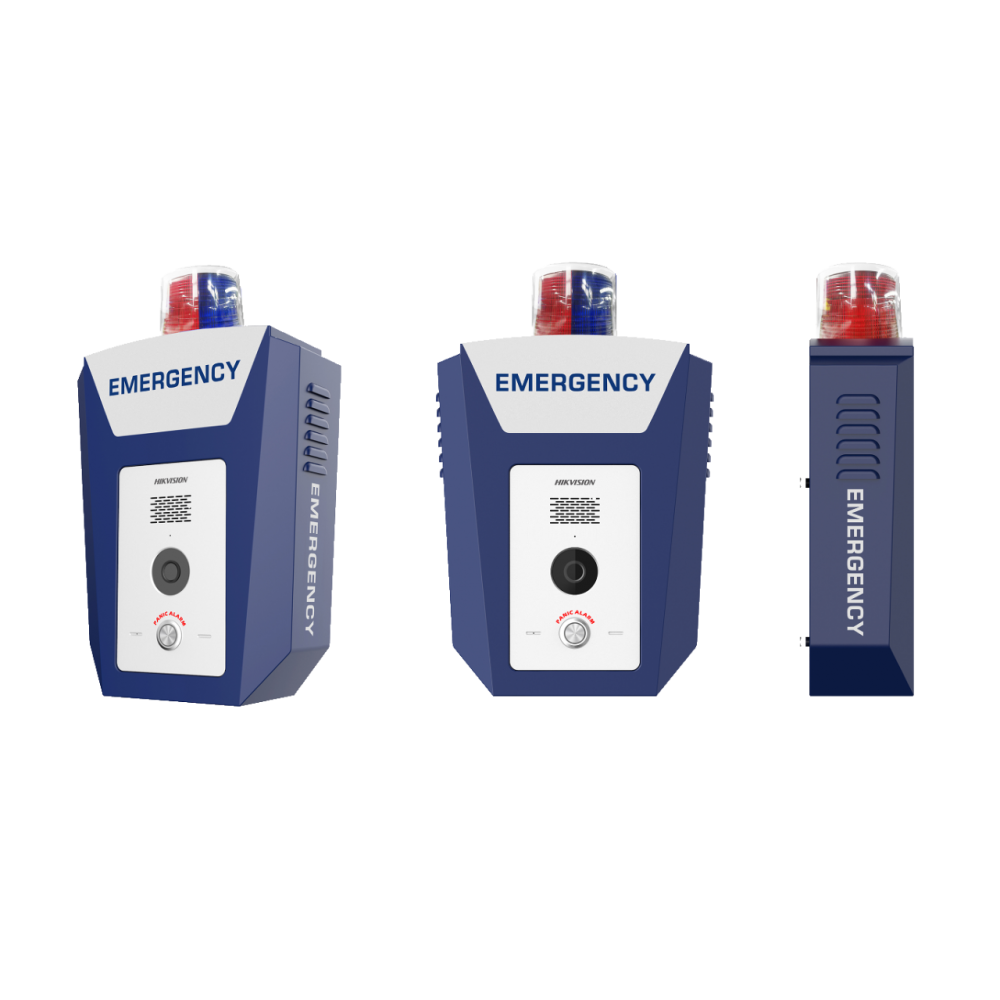

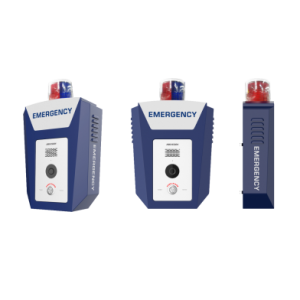

Estacion de Alarma de Panico DS-PEA2-21
TERMINAL DE EMERGENCIA DE EXTERIOR
- Botón de Panico
- Camara 2 Mpx c/IR 10mts
- Procesador de alta performance
- Doble conexión de Red 10/100M
- Compresión H.265 / H.264+ /H.264
- Audio Bidireccional Intercom h/5mts
- Slot de Tarjetas SD h/128Gb
- Apto para exterior montaje de pared IP65
| Device interfaces |
|---|
| Siren: |
|
1. Sound Can be Configured Separately |
| Alarm lamp: |
|
1. Light Can be Configured Separately |
| PSTN: |
|
1-ch |
| SD Card: |
|
Standard Micro SD card Slot. Supports Micro SD/SDHC/SDXC Card. Max. 128G |
| IO Output: |
|
2 |
| IO Input: |
|
2 |
| Ethernet port: |
|
2 RJ45 10 M/100 M Self-adaptive Ethernet Port |
| Alarm |
|---|
| Tampering Alarm: |
|
Supported |
| One-touch alarm: |
|
Supported |
| Network parameters |
|---|
| Network encryption: |
|
Supports User Lock-in and Password Security Prompt |
| Public network transmission: |
|
EHome. |
| Ethernet: |
|
10 M/100 M Self-adaptive Ethernet port |
| Network protocol: |
|
TCP/IP. RTSP. SNMP. HIK-SIP. ONVIF |
| Audio parameters |
|---|
| Audio quality: |
|
Noise Suppression and Echo Cancellation |
| Audio compression standard: |
|
G.711 U/64Kbps. G.726 /16Kbps |
| Audio output: |
|
1-ch 3 W Build-in Loudspeaker;1-ch 3.5 mm Audio Interface for External Audio Output |
| Audio input: |
|
1-ch Built-in Omnidirectional Microphone. Pickup Distance: 5 m;1-ch 3.5 mm Audio Interface for External Audio Input |
| Build-in camera parameters |
|---|
| Resolution: |
|
1920*1080@25fps |
| Video compression standard: |
|
H.264. H.264 SVC. H.265 |
| Day & night: |
|
IR Cut Filter |
| FOV: |
|
Horizontal: 128°;Vertical: 75°;Diagonal: 147° |
| Camera: |
|
2 MP HD IR Camera. IR Distance ‚â• 10 m |
| System parameters |
|---|
| Operation system: |
|
Embedded Linux Operation System |
| Processor: |
|
High-Performance Embedded SOC Processor |
| General |
|---|
| Dimensions: |
|
516.5 mm x 327.7 mm x 125 mm (20.33" x 12.90" x 4.92") |
| Installation: |
|
Hold Hoop and Wall Mounting |
| Working humidity: |
|
10% to 90% |
| Working temperature: |
|
-40 °C to + 60°C (-40 °F to 140 °F) |
| Power consumption: |
|
24W |
| Power supply: |
|
100-240 VAC |
