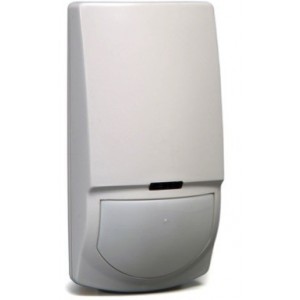

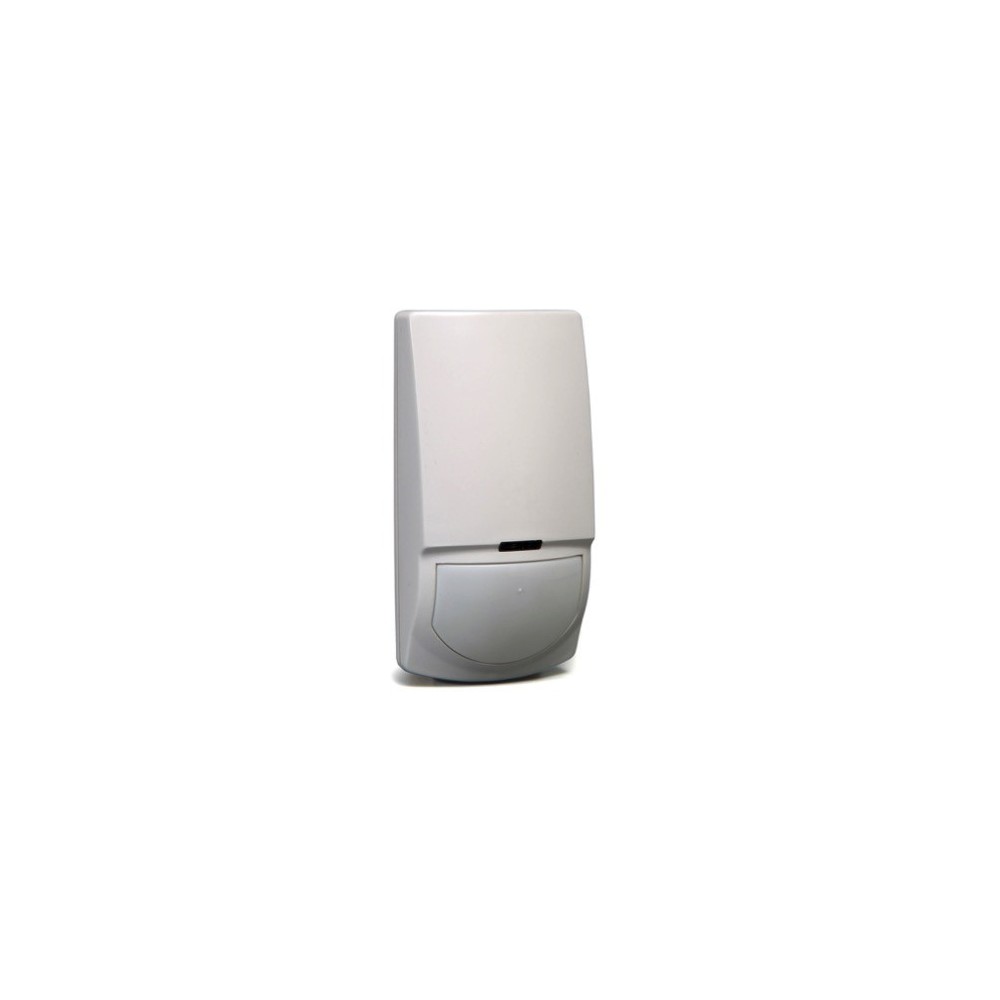

Detector PIR + Golpe y Ruptura de vidrio SWAN PGB

Name: Detector PIR + Golpe y Ruptura de vidrio SWAN PGB
Brand: Crow
SKU: AL0052
Price: 22.42 USD
Availability: OutOfStock

Marca : Crow

Referencia : AL0052

SKU Automatec: AL0052

-- DISPONIBILIDAD --

Fuera de stock, Consulte a su Ejecutivo de ventas

Fuera de stock

USD 22,42

USD 26,38

15% Descuento Exclusivo Instalador

+ IVA

Cantidad

Fuera de stock

Detector PIR + Golpe y Ruptura de vidrio SWAN PGB

Detection method	Quad (Four Element) PIR & Microphone
Detection range	Glass up to 10m ( 90¬∞ ); PIR up to 15m (WA lens)
Alarm period	2 sec (¬± 1 sec)
Led indicators	Yellow LED (GLASS) ‚a glass break signal for testing & adjustment Green LED (SHOCK) ‚a shock signal for testing & adjustment Red LED (ALARM) ‚a alarm signal Fleshing light ‚a glass & break detection or glass & shock & PIR detection Constant light ‚a PIR detection
Warm up period	60sec (¬± 5sec)
Alarm output	N.C 28VDC 0.1 A with 10 Ohm series protection resistor
Tamper Switch	N.C 28VDC 0.1A with 10 Ohm series protection resistor open when cover is removed
Operating voltage	8.2 to 16 VDC
Current draw	Alarm PIR :16.5mA Alarm Shock & Glass: 22mA; Alarm all: 18mA Standby: 16.5 mA
White light filter	3500 Lux up to 6500 Lux with optional filter
RFI protection	30V/m 10 ‚a 1000MHz
EMI protection	50,000V of electrical interference from lightning or power through
Optimum installation height	1.8m to 2.4m
Temperature compensation	Yes
Operating temperature	-10¬∞C to +50¬∞C
Dimensions	123mm x 62mm x 38mm
Weight	110 gr

Marca Crow

Referencia : AL0052

Fuera de stock

Importante: Los productos de Remate No Tienen Garantía. No tiene derecho a retracto, cambio o devolución.
