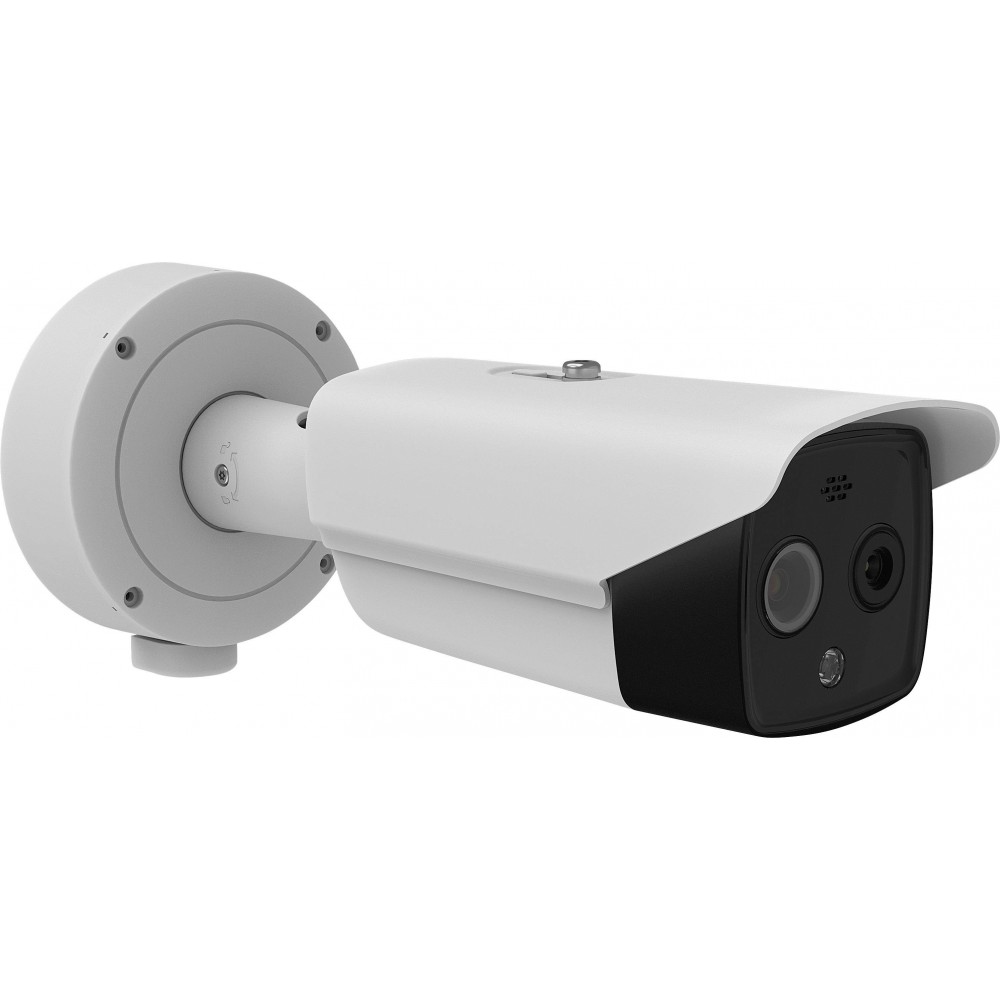

Camara Termal detección de Fiebre DS-2TD2636B-15/P
CÁMARA BULLET TERMOGRAFICA DETECCIÓN DE FIEBRE DS-2TD2636B-15/P
- Módulo térmico de alta sensibilidad con resolución 384 x 288
- NETD es inferior a 40 mk (@ 25 ° C. F # = 1.0)
- Tecnología líder de procesamiento de imagenes térmicas: Adaptive AGC. DDE. 3D DNR
- Alarma confiable de detección de fiebre
- Módulo óptico de alta calidad con resolución de 4 MP.
- Bi-espectro de fusión de imagenes. vista previa de imagen en imagen
Thermal
- Image SensorVOx Uncooled Focal Plane Arrays
- Resolution384x288
- Pixel Interval17μm
- Response Waveband8μm to 14μm
- NETDLess than 40 mK (@25°C.F#=1.0)
- Focal Length15mm
- Focus ModeAthermalized
- IFOV1.13 mrad
- ApertureF1.0
- Field of View24.2°x 18.4° (H x V)
- Min. Focusing Distance2.5 m
Optical
- Image Sensor1/2.7" Progressive Scan CMOS
- Resolution2688x1520. 4MP
- Min. IlluminationColor: 0.0089 Lux @(F1.6. AGC ON). B/W: 0.0018 Lux @(F1.6. AGC ON)
- Field of View51.7° x 28° (H x V)
- Focal Length6mm
- Focus ModeFixed
- Shutter Speed1s to 1/100.000s
- White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
- Day & Night ModeIR cut filter with auto switch
- WDR120 dB
Illuminator
- IR DistanceUp to 50 m
- IR Intensity and AngleAutomatically adjusted
Feature
- Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
Smart Function
- Temperature MeasurementSupport 3 temperature measurement rule types. 21 rules (10 points. 10 areas. and 1 line).
- Temperature RangeFrom 30°C to 45°C (86°F ~ 113°F)
- Temperature Accuracy± 0.5 °C
Network
- Main StreamThermal: 50fps(1280 x 720. 704 x 576. 384 x 288. 352 x 288);Optical: 50Hz: 25fps (1920 x 1080). 25fps (1280 x 960). 25fps (1280 x 720);Optical: 60Hz: 30fps (1920 x 1080). 30fps (1280 x 960). 30fps (1280 x 720)
- Sub StreamThermal: 25fps(704 x 576. 352 x 288. 320 x 240);Optical: 50Hz: 25fps (704 x 576). 25fps (352 x 288). 25fps (176 x 144);Optical: 60Hz: 30fps (704 x 480). 30fps (352 x 240). 30fps (176 x 120)
- Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
- Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
- ProtocolsTCP/IP. ICMP. HTTP. HTTPS. FTP. DHCP. DNS. DDNS. RTP. RTSP. RTCP. PPPoE. NTP. UPnP. SMTP. SNMP. IGMP. 802.1X. QoS. IPv6. UDP. Bonjour
- APIONVIF (Profile S. Profile G. Profile T). ISAPI. SDK
- SecurityPassword protection. HTTPS encryption. 802.1X authentication (EAP-TLS 1.2. EAP-LEAP. EAP-MD5). watermark. IP address filter. basic and digest authentication for HTTP/HTTPS. WSSE and digest authentication for ONVIF. RTP over HTTPS
- Simultaneous Live ViewUp to 20
Interface
- ClientiVMS-4200. Hik-Connect
- Web BrowserPlug-in required: IE8-IE11. Chrome 41-44. Firefox 30.0-51
- Alarm Input2-ch inputs (0-5vDC)
- Alarm Output2-ch relay outputs. alarm response actions configurable
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input1. 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p]. output impedance: 1 KΩ ± 10%
- Audio OutputLinear Level; Impedance: 600Ω
- RS4851. RJ45 10M/100M Self-adaptive Ethernet interface. 1. RS-485 interface
- Analog Video Output1.0V [p-p]/75Ω. BNC. PAL/NTSC
- Communication Interface1. RJ45 10M/100M Self-adaptive Ethernet interface. 1. RS-485 interface
- On-board StorageBuilt-in Micro SD card slot. support Micro SD/SDHC/SDXC card (up to 128G). support manual/alarm recording
General
- Web Client Language32 languages English. Russian. Estonian. Bulgarian. Hungarian. Greek. German. Italian. Czech. Slovak. French. Polish. Dutch. Portuguese. Spanish. Romanian. Danish. Swedish. Norwegian. Finnish. Croatian. Slovenian. Serbian. Turkish. Korean. Traditional Chinese. Thai. Vietnamese. Japanese. Latvian. Lithuanian. Portuguese (Brazil)
- WiperNo
- User/Host levelUp to 32 users. 3 levels: Administrator. Operator. User
- Power24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af. class 3): 44 V to 57 V. 0.22 A to 0.17 A
- Power Consumption18 VAC to 30 VAC: 0.38 A to 0.22 A. max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A. max. 9 W PoE (802.3af. class 3): 44 V to 57 V. 0.22 A to 0.17 A. max. 9.5 W
- Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
- Protection LevelIP66 Standard; TVS 6000V Lightning Protection. Surge Protection and Voltage Transient Protection
- Dimension376.1 mm x 119.1 mm x 118.1 mm (14.81" x 4.68" x 4.65")
- WeightApprox. 1.82 kg (4.01 lb)
